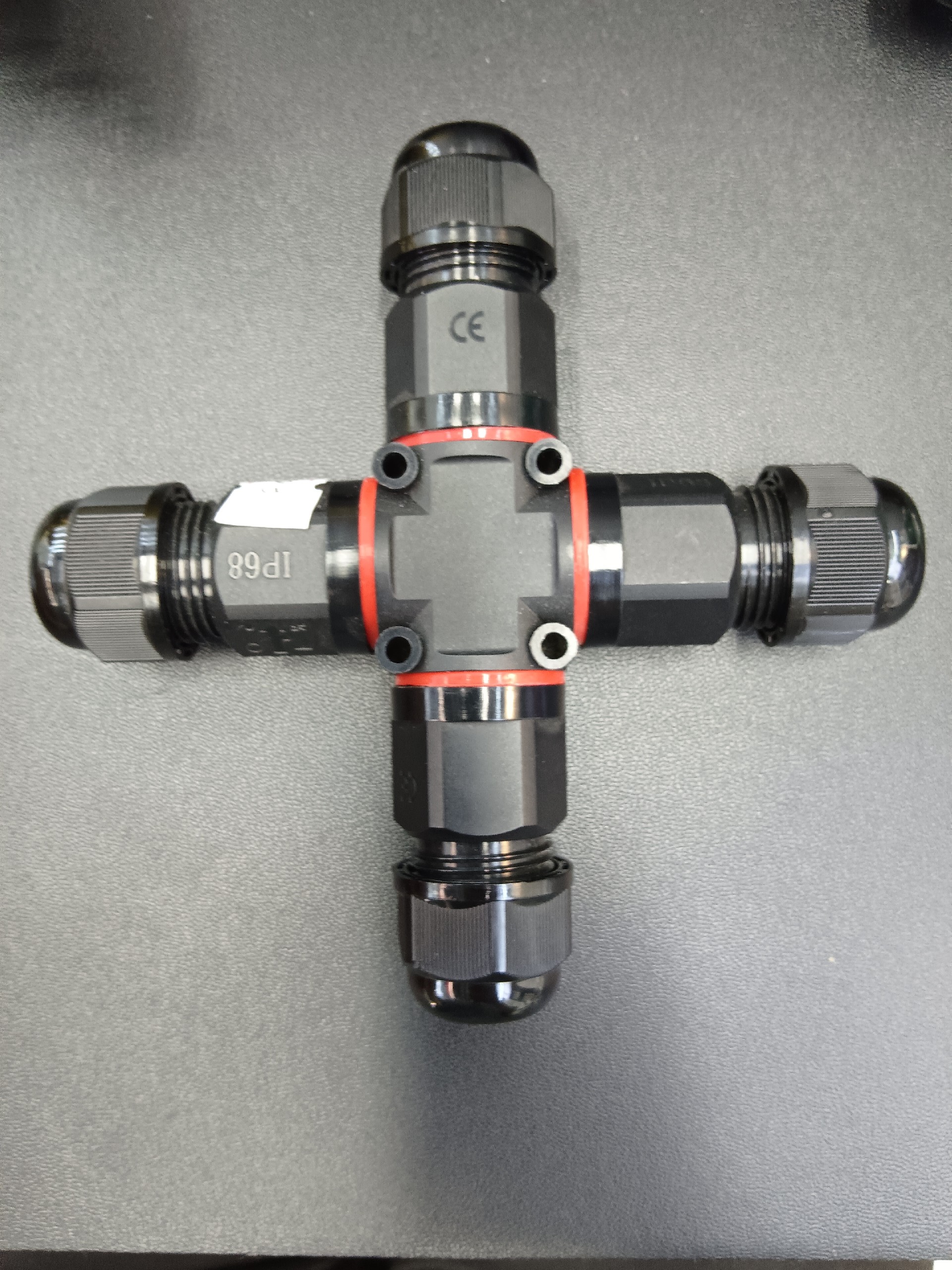

1) Connector Types — at a Glance
Pick a geometry that matches your routing. Common options: Straight, T-type, Y-type, X-type, Quick-connect, and High-current. All support IP68 sealing with 2–4 pins and PG/M threads.

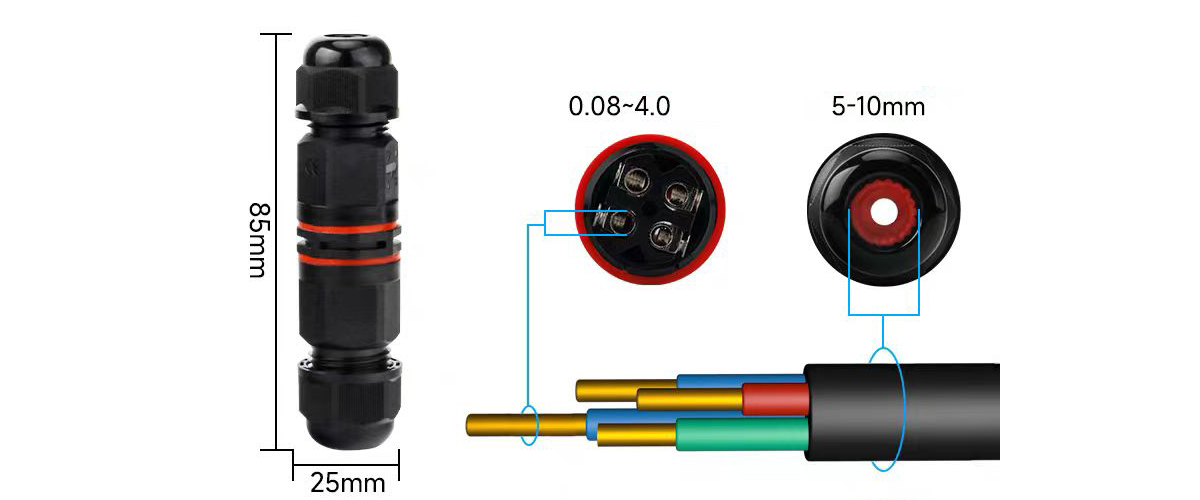

2) How to Choose the Right Size
Cable outer diameter: match gland range (4–6.5 / 6–10 / 10–14 mm).
Pin count & current: 2–4 pins; 10A / 20A according to load.
Thread system: PG or metric (M) to fit enclosure knockouts.
Material: flame-retardant PA66/PC; UV-resistant for outdoor.
3) 4-Step Installation (No Soldering)
Strip outer sheath (expose 6–10 mm conductor).
Slide on nut & rubber seal (seal must hug sheath).
Connect wires by color (terminal block or screw clamp).
Tighten body & cap (compression forms IP68 seal).
4) Typical Use Cases
Outdoor LED lighting, garden/field irrigation, solar junctions, marine gear, and industrial control panels.
Specs Checklist
| Parameter | Options | What to check |
|---|---|---|
| Cable Ø | 4–6.5 / 6–10 / 10–14 mm | Outer sheath must compress under gland |
| Pin Count | 2 / 3 / 4 pins | Match signal / L-N-E plan |
| Current | 10A / 20A | Rated current ≥ load current |
| Thread | PG / Metric (M) | Compatible with enclosure knockouts |
| Material | PA66 / PC | Flame-retardant, UV-resistant |
| Ingress | IP68 | Verify assembly torque and seal |
Get the Right Connector
Need Straight, T, Y, or X connectors with 2–4 pins? Explore our catalog or contact us for OEM/ODM.
